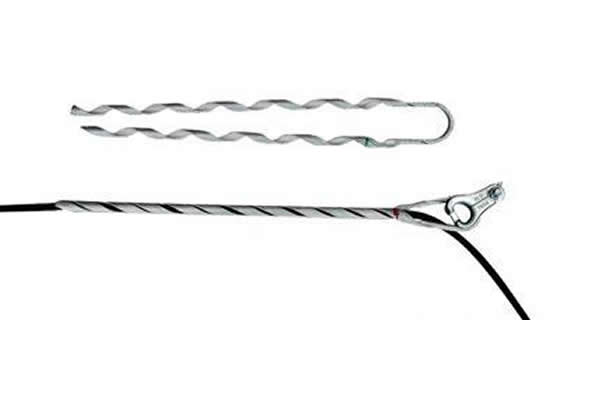

Short Span Dead-Ends For ADSS (ADN)

Short Span Dead-Ends For ADSS (ADN),find more information about Short Span Dead-Ends For ADSS (ADN) products at Shijiazhuang Paerpu Import and Export Trading Co.,Ltd.
  • /images/up_images/20165272112.jpg
  • /images/up_images/20165272115.jpg

Component
Single layer glue thread, thimble, extension loop, U-shaped hanging loop, bolt, nut etc.

Characteristic
Simple structures, easy installation, and to lower the costs of the project.

Conditions for the usage
Optical cable projects with smaller span, line angle of greater than 15° and RTS less than 15kN.

Intensity
30KN

Description

Model Grip(KN) Suggested Span(m) Length of Inner Armor Rods(mm) Length of Outer Armor Rods(mm) Estimated Weight (KG) Color
ANZ-16-* * 16 100 1300 1000 2.7 Yellow
ANZ-25-* * 25 101 -200 1700 1300 3.4 Yellow
ANZ-30-* # 30 201 -300 1900 1500 3.9 Yellow
ANZ-40-* # 40 301 -400 2100 1700 4.1 Yellow
ANZ-50-* # 50 401 -500 2300 1900 4.5 Yellow
ANZ-60-* # 60 501 -600 2200 1700 4.8 Yellow
ANZ-70-* # 70 601 -800 2700 2200 5.0 Yellow
ANZ-80-* # 80 801 -1000 2800 2400 5.5 Yellow

Note:
1. Representing the outer diameter of the optical cable (mm).
2. The hardware fittings for special center pipe thin cable can be
3. Configured according to parameters of the optical cable

Product feature

1. Our factory have passed the ISO9001 certificate.

2. Have a production capacity of 4 million preformed fittings per year, we are the largest production and wholesale factory in China at present.

3. Obtain the Beijing, Nanjing etc. industry authoritative testing organization certification.
